Trimble GeoSpatial Systems

Description

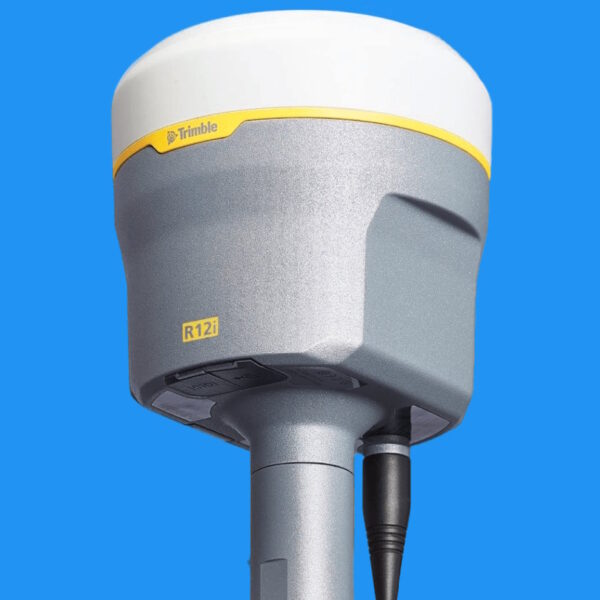

The Trimble R12i GNSS Receiver is a high-precision measurement and positioning device designed for geodetic, topographic, and construction surveys.

Here are the top features of the Trimble R12i GNSS Receiver:

Tilt Compensation

The Trimble R12i GNSS Receiver features Trimble TIP™ IMU-based tilt compensation technology, which allows for accurate measurements even when the receiver is not level.

This feature is particularly useful when working on uneven terrain or in areas where it is difficult to keep the receiver level.

Features

The Trimble R12i GNSS Receiver has several features that make it a powerful tool for surveying professionals:

• Trimble ProPoint™ RTK Engine: This industry-leading positioning engine provides unmatched performance and flexibility
• All-Constellation Support: The receiver can use any and all available GNSS constellations and signals, providing increased accuracy, reliability, and productivity in challenging environments
• Trimble 360 Technology: This powerful 672-channel solution delivers the most advanced satellite tracking of all constellations and provides improved protection against jamming and spoofing
• Field-Proven, Ergonomic Design: The receiver is designed for comfortable use in the field, with the latest Trimble GNSS hardware housed in an ergonomic design

Full Specifications

Here are the full specifications of the Trimble R12i GNSS Receiver:

• Channels: 672
• Tilt Compensation: Yes, with Trimble TIP™ IMU-based technology
• Constellations: GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC, SBAS
• Positioning Accuracy: 1 cm + 1 ppm
• RTK Initialization Time: < 5 seconds
• RTK Initialization Reliability: > 99.9%
• Data Update Rate: Up to 20 Hz
• Dimensions: 4.6″ x 5.4″ (19.8 cm x 19.8 cm x 10.2 cm)
• Weight: 2.49 lbs
