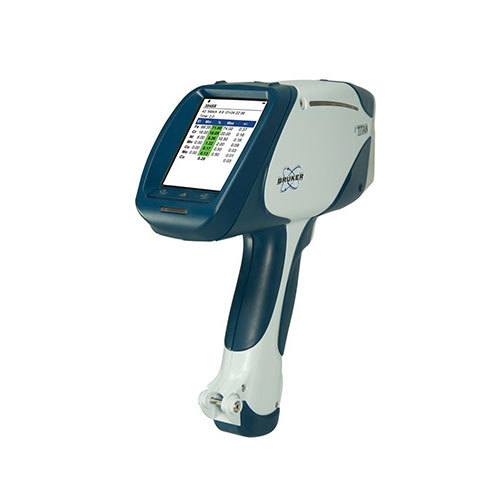

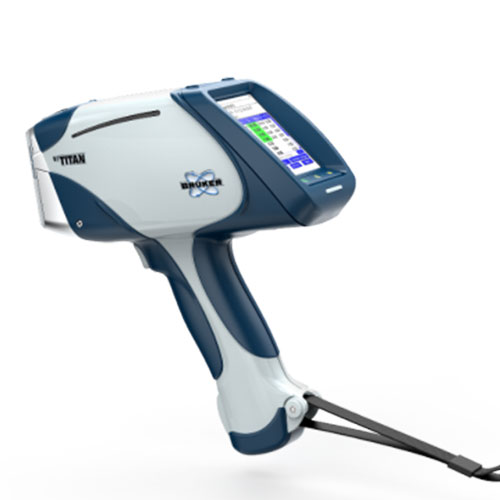

Bruker S1 Titan 500S Handheld XRF Analyzer

  • Elemental Range: Measures from Mg to U
  • Excitation: 29kV; No filter
  • Detector: Graphene window silicon drift detector (SDD)
  • Resolution: < 145 eV at 450,000 cps
  • X-ray Tube: Rh target, 4W, 6-50 kV, 5-200 µA
  • Collimator (Spot Size): 8 mm
  • Weight: Approximately 1.5 kg (3.3 lbs) including battery
  • Battery: Li-Ion, 7.2 V nominal
  • Display: 3.7-inch LCD touchscreen with 640 x 480 resolution
  • Camera: Optional, 640 x 480 pixels
  • Power Supply: AC adapter (9 V DC @ 3 A)


See detailed Review

For any questions, call us at 1-833-TRAKKIT
Email us: [email protected]

Get Quote

SKU: S1TITAN500S Category:


The Bruker S1 Titan 500S is a robust handheld XRF analyzer designed for accurate elemental analysis in various applications, from quality control in manufacturing to environmental testing. With its lightweight and ergonomic design, it can measure a wide range of elements, from magnesium to uranium, using non-destructive XRF spectrometry.

The S1 Titan 500S boasts a state-of-the-art graphene window silicon drift detector (SDD), offering exceptional accuracy and sensitivity. Its patented TITAN DetectorShield™ provides lifetime protection against detector punctures, ensuring durability even in harsh environments. The analyzer’s fast analysis speed and excellent detection limits make it ideal for quickly reporting elemental composition across various industries, including mining, recycling, and metal alloys.

Equipped with an intuitive interface, the S1 Titan 500S is user-friendly, with both user-level and supervisor-level access. It supports data transfer through USB flash drives or Wi-Fi, enabling easy integration into existing workflows. The IP54 rating ensures the S1 Titan 500S can withstand field operations in humid and dusty conditions.

With a range of optional accessories, including a benchtop stand, mobile printer, and GPS receiver, the S1 Titan 500S offers versatile solutions for your elemental analysis needs​​.
